    • NX25

    NX25

    NX25 Small Area System

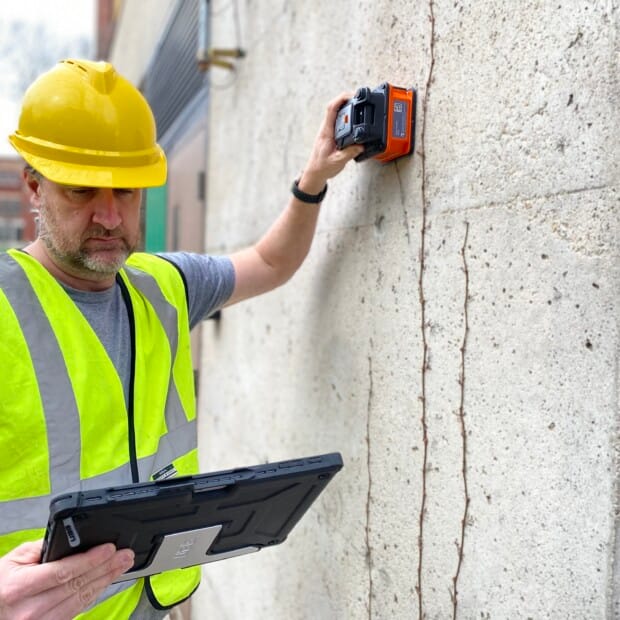

    NX25™ powered by Nexus™, makes scanning easier than ever. This lightweight and compact antenna is purpose -built for reaching difficult areas such as walls, ceilings, and scanning tight spaces. With its intuitive design, the new Nexus Elements™ Interface simplifies routine tasks and ensures that even basic operations are seamless and efficient.

    Whether you’re a contractor, engineer, or technician, the NX25 Small Area System is ideal for anyone who requires reliable, easy-to-use tools for mark and go jobs and wants to maintain productivity on the job.

    Request a Demo
    Play Video
    • DEPTH RANGE:

      0-75 cm (0-30 in)

    • ENVIRONMENTAL:

      -20°C to +50°C (-4°F to +122°F)

    • PRODUCT SUPPORT:

      Comprehensive training
      2-year warranty

    • SIMPLE

      Wireless Made Easy

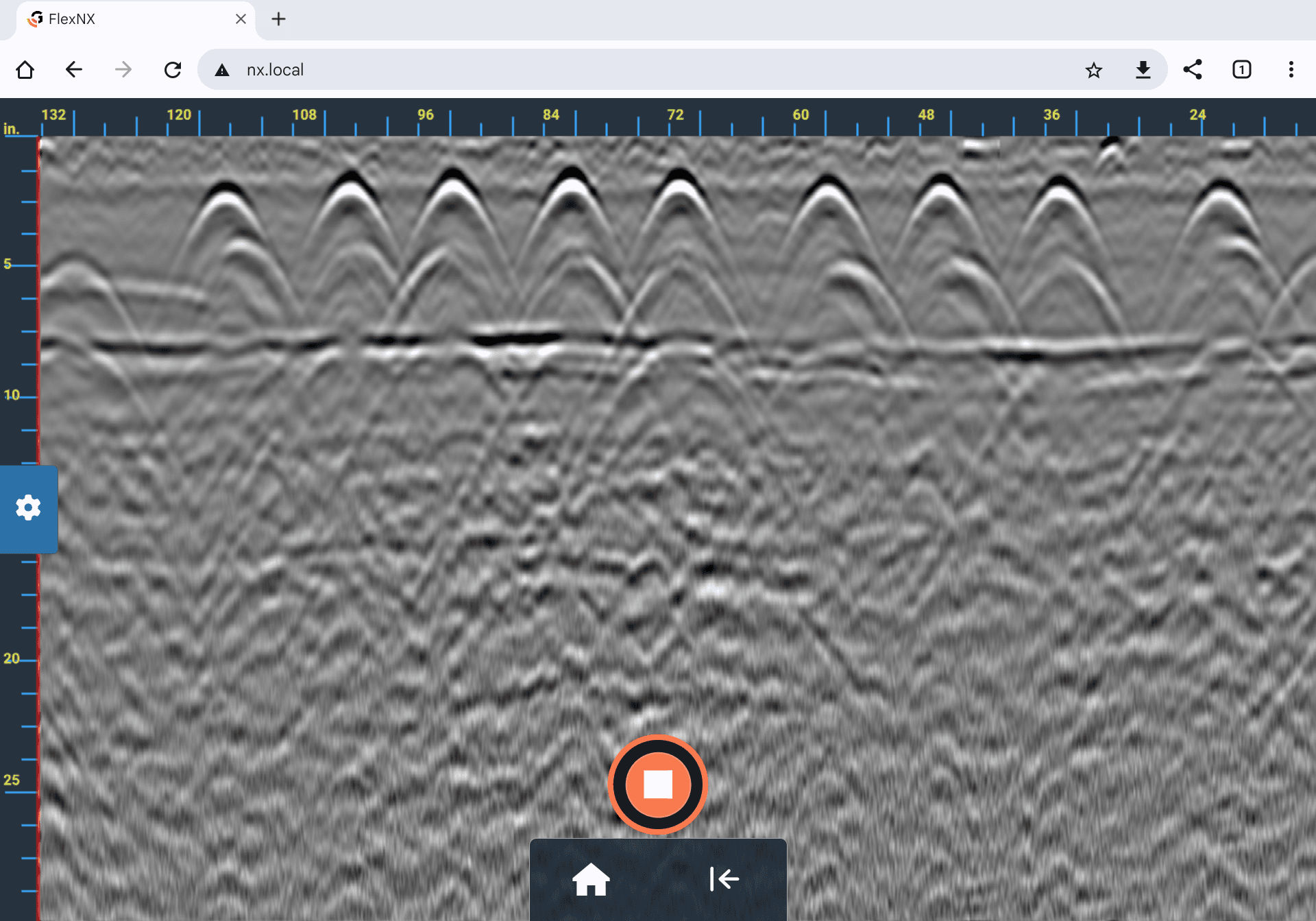

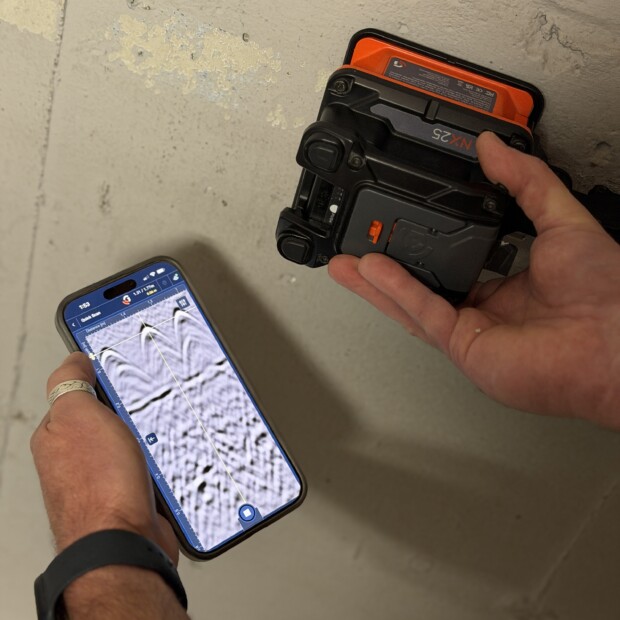

      Effortlessly pair NX25® to any modern phone or tablet. No app required – directly connect through Wi-Fi and a web browser and you are good to go.

      Ready When You Are
      NX25 includes easy to use software with powerful features and unmatched data quality. No need to waste time setting up the system; just power on and scan!

      Deliver Results
      Mark your findings on the ground and move on to the next job. Or, quickly upload screengrabs and pictures of your markout to GSSI Fusion and craft a professional and customized report for your customers.

      Note: NX25 Small Area System data cannot be saved unless connected to Flex NX or Flex LT.
    • FLEXIBLE

      Adaptable Scanning Modes
      NX25 was designed with your job conditions at the forefront. Use the adjustable survey wheel to easily switch between standard, cross polarized, and side car scanning depending on the task at hand.

      Choose your Interface

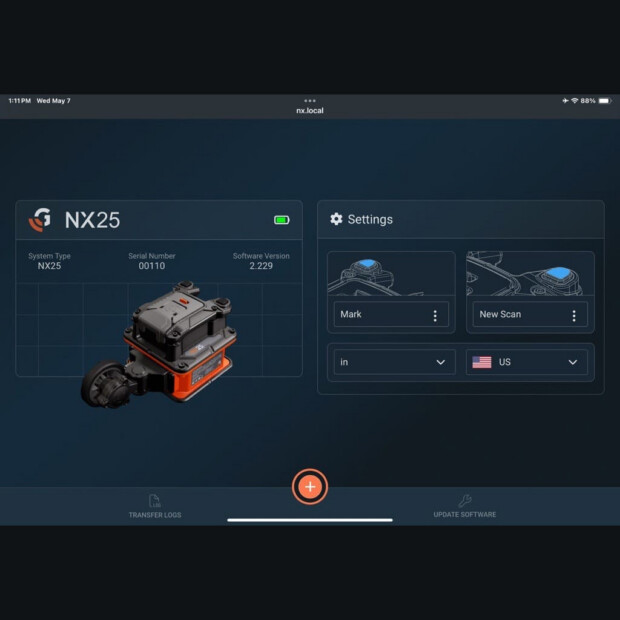

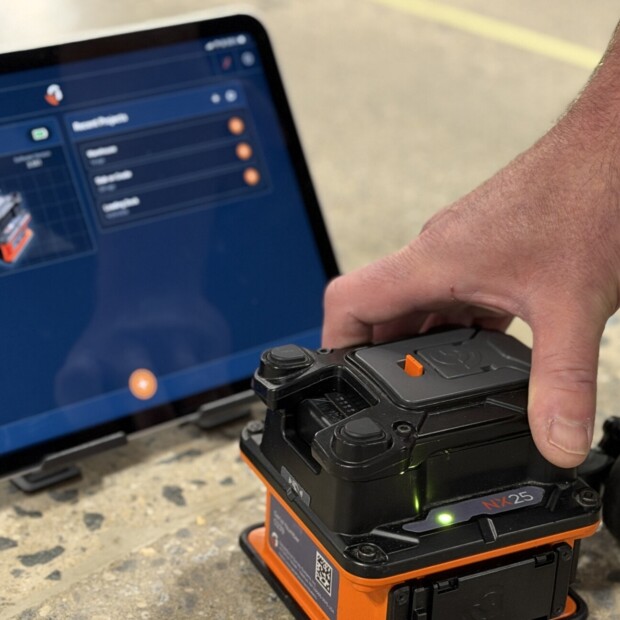

      Breeze through mark-and-go scanning jobs using NX25 with the Nexus Elements Interface. For more complex scenarios, or when data saving or advanced analysis is needed, pair NX25 with a Flex NX or Flex LT and use the full Nexus Interface to tackle the more demanding jobs.

      Optional Accessories

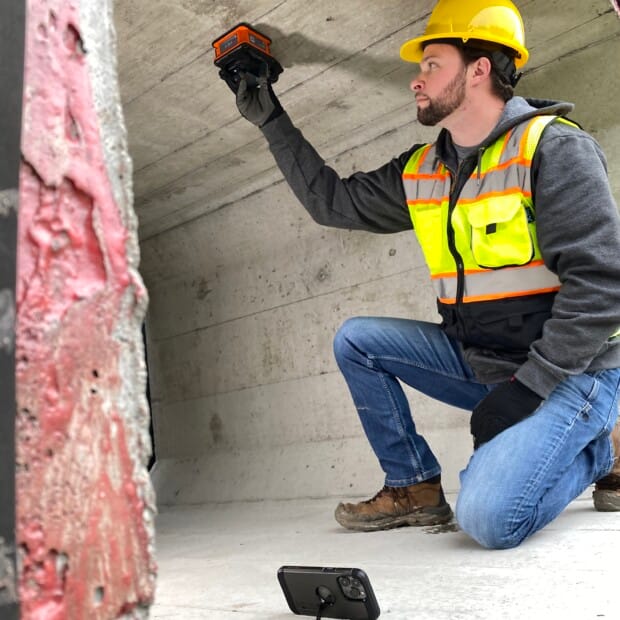

      To access hard-to-reach areas like high walls and ceilings, simply attach the NX telescoping pole accessory.

    • TRUSTED

      Jobsite Ready Design
      Built with a rugged and lightweight magnesium housing and engineering-grade plastics, NX25 delivers exceptional durability and dependable performance for your everyday jobsite conditions.

      All Day Battery Life
      You deserve an antenna that works the same hours you do. NX25 is ready for work and includes two Lithium-Ion batteries that provide a combined battery life of 10+ hours.

      Built to Last
      We believe in our systems, that’s why every NX25 antenna comes with a two-year warranty.

      We’ve Got your Back
      Our mission is to make you successful. That’s why NX25 comes standard with two years of complimentary in-house training and support.

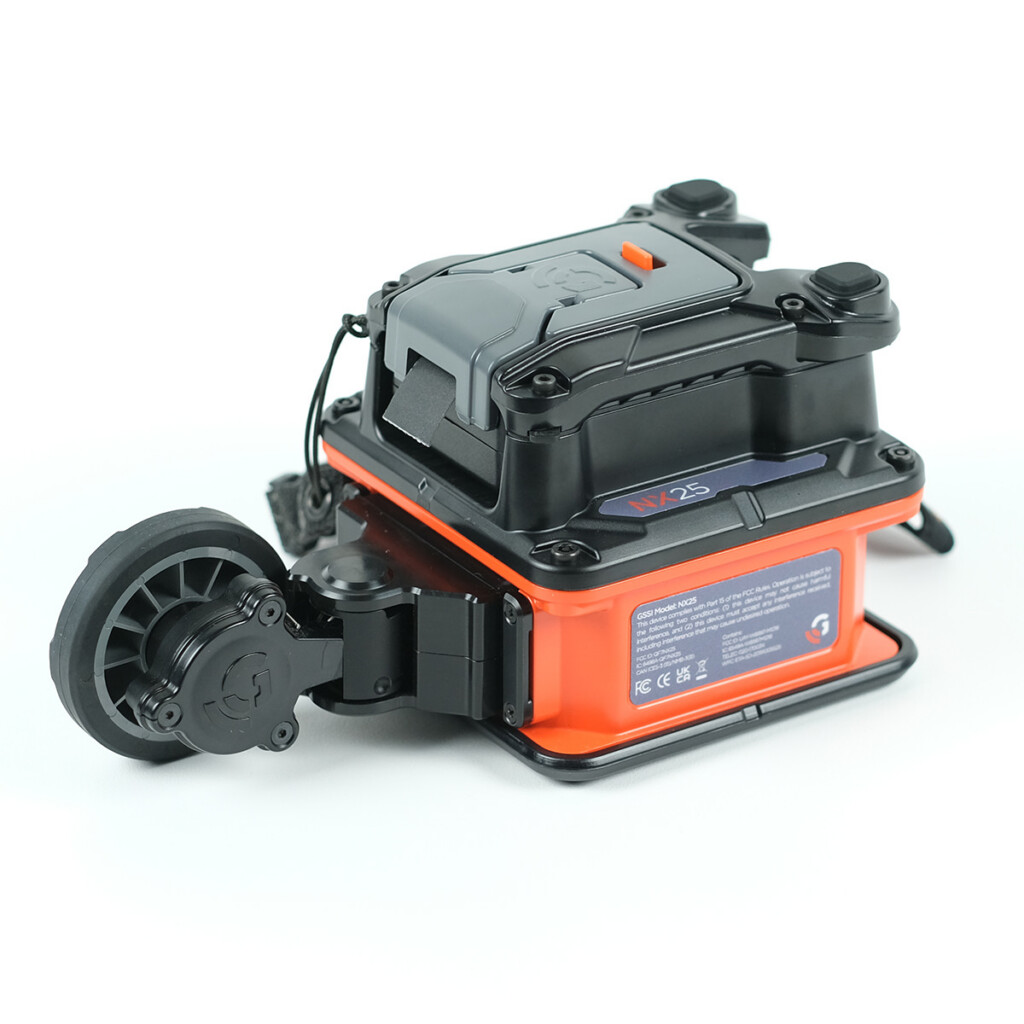

    NX 25: Small Area System

    NX 25: Small Area System

    Product Number: FGNX25 SMALL AREA SYSTEM

    The NX25 Small Area System combines a simple to use interface with the flexibility of a bring-your-own-controller solution. This system is ideal for scanning tight spaces, walls, and ceilings and is optimized for mark-and-go scanning and jobsite efficiency.
    NOTE: This system does not save data.

    System Includes:

    • NX25 antenna with detachable encoder
    • Lithium-ion 2-cell battery (2) for NX25/NX15
    • Dual-bay battery charger
    • NX25/NX15 RAM ball accessory bracket
    • NX25/NX15 port cover (2)
    • NX25/NX15 backpack
    • Wrist strap
    • Nexus Elements NX25/NX15 Quick Start Guide

    Extended Warranty

    Your NX25 is covered by a 2-year limited warranty. Would you like information about extending the warranty for up to 3 additional years?

    Add to Quote
    Data Examples
    NX25: Best in Class Performance in a Compact Size

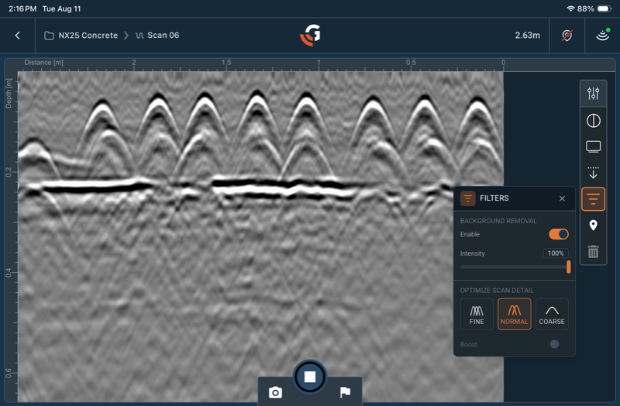

    This data is a screen shot taken from a tablet using NX25 Nexus Elements. GPR data was collected on a vertical concrete wall showing two layers of rebar and possible air void behind the wall.

    System Includes
    Small Area System: NX25 Antenna with Backpack
    • NX25 antenna with detachable encoder
    • Lithium-ion 2-cell battery (2) for NX25/NX15
    • Dual-bay battery charger
    • NX25/NX15 RAM ball attachment
    • NX25/NX15 port cover (2)
    • NX25/NX15 backpack
    • Wrist strap
    • Nexus Elements NX25/NX15 Quick Start Guide
    Specifications
    MAX DEPTH0-75 cm (0-30 in)
    OPERATING TEMPERATURE-20°C to +50°C (-4°F to +122°F)
    IP RATING IP65
    WEIGHT0.83 kg (1.8 lbs) including battery
    DIMENSIONS11.2 x 11.2 x 10.5 cm (4.4 x 4.4 x 4.1 in)
    Resources
    Accessories

    NX Telescoping Pole

    NX Telescoping Pole accessory with a universal RAM ball interface. Adjustable from 0.5 m (1.7 ft) to 1.2 m (4.0 ft). Compatible with Flex NX/LT and NX25/NX15. Fits inside Flex NX transit case and in Flex Backpack side pocket.
