    • NX15

    NX15

    Engineered for Depth. Built for Performance

    NX15® Deep Target System is designed for inspecting thick concrete, slab-on-grade surfaces, and structural elements. Engineered for enhanced penetration, it offers a depth range of 0–150 cm (0–60 in) in ideal conditions.

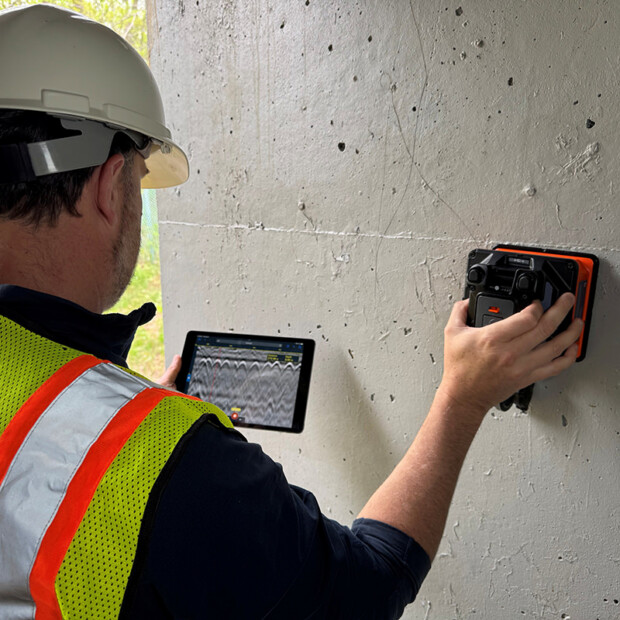

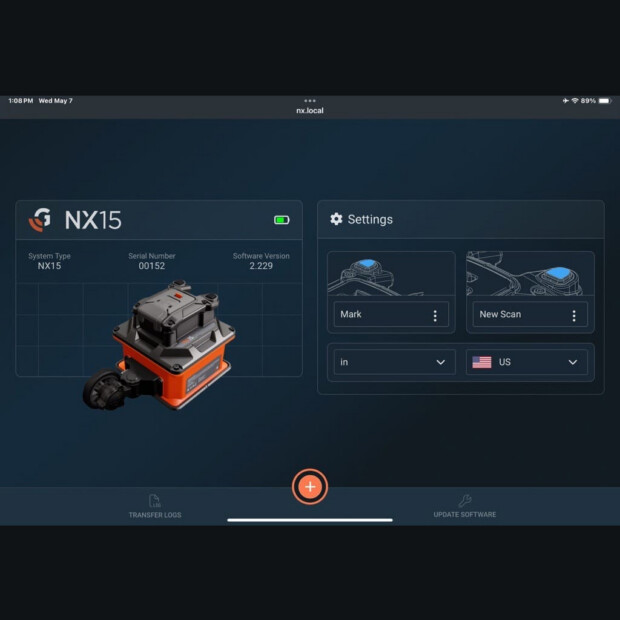

    NX15 pairs intuitive operation with the new Nexus Elements™ Interface. Its ergonomic form factor allows you to scan, mark, and move quickly from one task to the next, streamlining your workflow on-site.

    Whether you’re a contractor clearing locations for deep coring or a technician tracing sub-grade utilities, NX15 delivers the depth and performance you need, giving you fast, reliable insights that reduce risk and keep your projects moving safely and efficiently.

    Request a Demo
    Play Video
    • SIMPLE

      Wireless Made Easy
      Effortlessly pair NX15® to any modern phone or tablet. No app required – directly connect through wi-fi and a web browser and you are good to go.

      Ready When You Are
      NX15 includes easy to use software with powerful features and unmatched data quality. No need to waste time setting up the system; just power on and scan!

      Deliver Results
      Accurately mark your findings on the ground and then pack up and move on to the next job, or quickly upload results to GSSI Fusion and craft a professional and customized report for your customers.

      Note: NX15 Deep Target System data cannot be saved unless connected to Flex NX or Flex LT.
    • FLEXIBLE

      Adaptable Scanning Modes
      NX15® was designed with your job conditions at the forefront. Use the adjustable survey wheel to easily switch between standard, cross polarized, and side car scanning depending on the task at hand.

      Choose your Interface

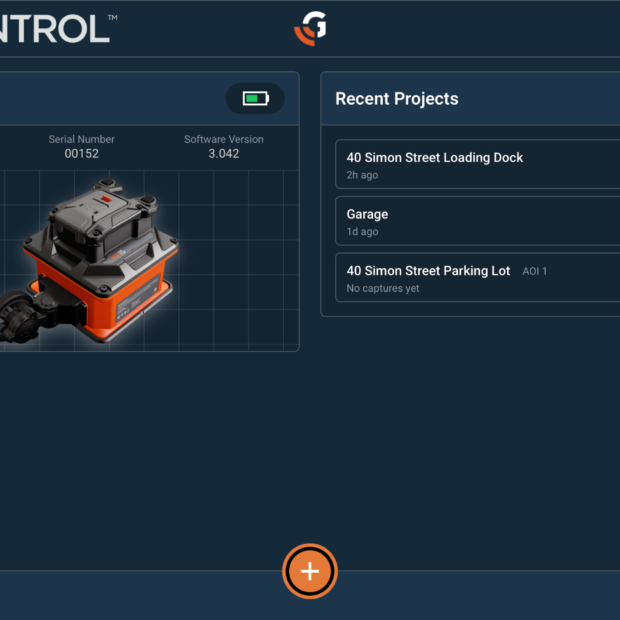

      Breeze through mark-and-go scanning jobs using NX15 with the Nexus Elements Interface. For more complex scenarios, or when data saving or advanced analysis is needed, pair NX15 with a Flex NX or Flex LT and use the full Nexus Interface to tackle the more demanding jobs.

      Optional Accessories
      To improve the ergonomics of long floor scans, high walls or ceilings, simply attach the NX telescoping pole accessory.

    • TRUSTED

      Jobsite Ready Design
      Built with a rugged and lightweight magnesium housing and engineering-grade plastics, NX15 delivers exceptional durability and dependable performance for your everyday jobsite conditions.

      All Day Battery Life
      You deserve an antenna that works the same hours you do. NX15 is ready for work and includes two Lithium-Ion batteries that provide a combined battery life of 10+ hours.

      Built to Last
      We believe in our systems, that’s why every NX15 antenna comes with a two-year warranty.

      We’ve Got your Back
      Our mission is to make you successful. That’s why NX15 comes standard with two years of complimentary in-house training and support.

    NX15: Deep Target System

    NX15: Deep Target System

    Product Number: FGNX15 DEEP TARGET SYSTEM

    The NX15 Deep Target System combines a simple to use interface with the flexibility of a bring-your-own-controller solution. This system is ideal for scanning thick concrete and locating deep targets below grade, and it is optimized for mark-and-go scanning and jobsite efficiency.

    NOTE: This system does not save data.

    System Includes:

    • NX15 antenna with detachable encoder
    • Lithium-ion 2-cell battery (2) for NX25/NX15
    • Dual-bay battery charger
    • NX25/NX15 RAM ball accessory bracket
    • NX25/NX15 port cover (2)
    • NX25/NX15 backpack
    • Wrist strap
    • Nexus Elements NX25/NX15 Quick Start Guide

    Extended Warranty

    Your NX15 is covered by a 2-year limited warranty. Would you like information about extending the warranty for up to 3 additional years?

    Add to Quote
    Data Examples
    NX15: Delivering Resolution and Depth

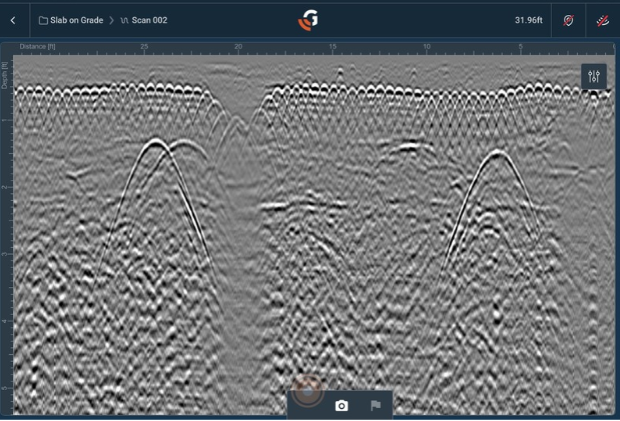

    GPR profile collected with NX15 and the Nexus Elements Interface across a non-reinforced concrete slab. This data shows the base of the slab, localized areas of subsidence or disturbance, and targets extending to a depth of at least 50in (127cm).

    System Includes
    Deep Target System: NX15 Antenna with Backpack
    • NX15 antenna with detachable encoder
    • Lithium-ion 2-cell battery (2) for NX25/NX15
    • Dual-bay battery charger
    • NX25/NX15 RAM ball attachment
    • NX25/NX15 port cover (2)
    • NX25/NX15 backpack
    • Wrist strap
    • Nexus Elements NX25/NX15 Quick Start Guide
    Specifications
    MAX DEPTH0-150 cm (0-60 in) based on ideal conditions
    OPERATING TEMPERATURE-20°C to +50°C (-4°F to +122°F)
    IP RATING IP65
    WEIGHT 1.28 kg (2.8 lbs)* including battery
    DIMENSIONS 13.2 x 13.9 x 13.9 cm* (5.2 x 5.5 x 5.5 in)
    Resources
    Accessories

    NX Telescoping Pole

    NX Telescoping Pole accessory with a universal RAM ball interface. Adjustable from 0.5 m (1.7 ft) to 1.2 m (4.0 ft). Compatible with Flex NX/LT and NX25/NX15. Fits inside Flex NX transit case and in Flex Backpack side pocket.
